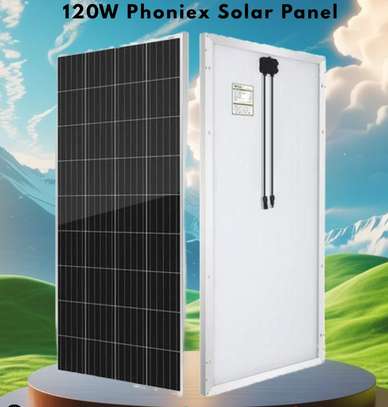

Phoniex 120W Monocrystalline Solar Panel

Electrical Characteristics (STC)
Peak Power (Pmax): 120 Watts
Maximum Power Voltage (Vmp): ~18.5V (Optimized for charging 12V batteries)
Maximum Power Current (Imp): ~6.48A
Open Circuit Voltage (Voc): ~22.3V
Short Circuit Current (Isc): ~6.90A
Module Efficiency: Up to 18.5%
Mechanical Specifications
Cell Type: A-Grade Monocrystalline Silicon
Frame: Corrosion-resistant anodized aluminum alloy (Silver)
Glass: 3.2mm high-transmission, low-iron tempered glass
Junction Box: IP65/IP67 waterproof rated with pre-installed cables
Weight: Approximately 8.5 kg - 9.5 kg
Dimensions: Approximately 1020 x 670 x 30 mm (standard 120W sizing)
Key Performance Highlights
All-Weather Performance: Engineered to generate power effectively even during cloudy or overcast days in Kenya.
High Durability: Built to withstand high wind pressure and light impact (hail resistant).
Easy Setup: Lightweight and compact, making it perfect for rooftops, rural homes, or mobile setups like caravans.
Long Life: Typical service life of over 25 years with a high-performance output guarantee.
Ideal Usage
This panel is perfect for:
Home Lighting: Powering multiple LED bulbs.
Entertainment: Running a DC/AC Solar TV (32") and radio.
Charging: Keeping smartphones, tablets, and small power banks charged daily.
*Standard Test Conditions (STC): Irradiance 1000W/m², Cell Temperature 25°C, AM1.5.
