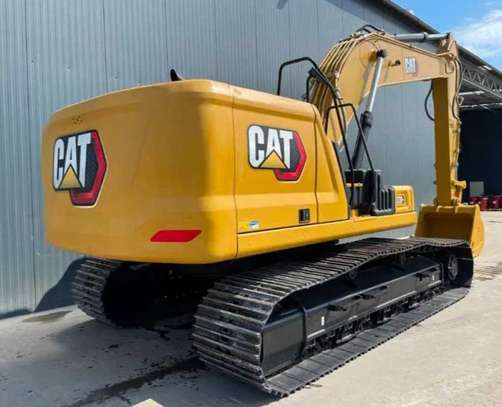

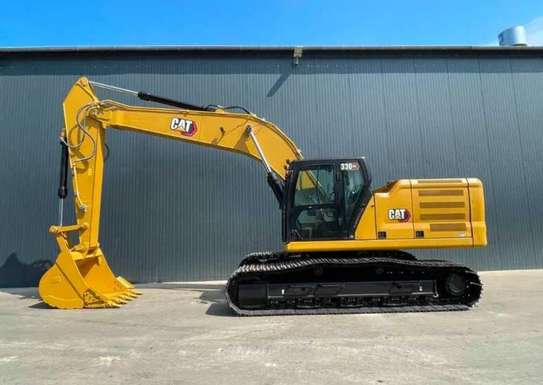

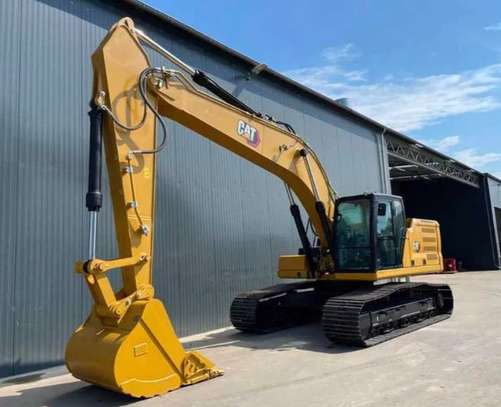

M4 - Caterpillar 330 GC

Engine & Power
Engine: Caterpillar C7.1, turbocharged diesel

Net Power: ~201-202 hp (151-152 kW)

Weight & Dimensions
Operating Weight: ~30,700 kg (67,700 lb)

Transport Dimensions:

Length: 10.42 m

Width: 2.99 m

Height: 3.05 m

Track Shoe Width: 600 mm

Digging & Reach
Maximum Dig Depth: ~7.26 m (23.8 ft)

Maximum Horizontal Reach: ~10.69 m (35.1 ft)

Maximum Loading Height: ~6.93 m (22.8 ft)

Bucket & Forces
Heavy-duty bucket capacity: ~1.54 m³

Bucket Digging Force: ~179 kN

Stick Digging Force: ~126 kN

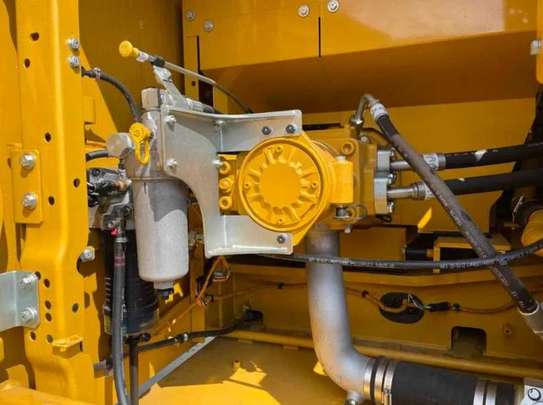

Hydraulic System
Implement Flow: ~560 L/min

Maximum Operating Pressure: ~35,000 kPa (5075 psi)

Swing Pressure: ~28,400 kPa (4120 psi)

Fluid Capacities
Fuel Tank: ~474 L

Engine Oil: ~25 L

Cooling System: ~25 L

Hydraulic System (total): ~310 L

DEF (Diesel Exhaust Fluid): ~41 L

Operational Features
Cold start capability: -18 °C standard, -32 °C optional

High ambient temperature rating: up to 52 °C

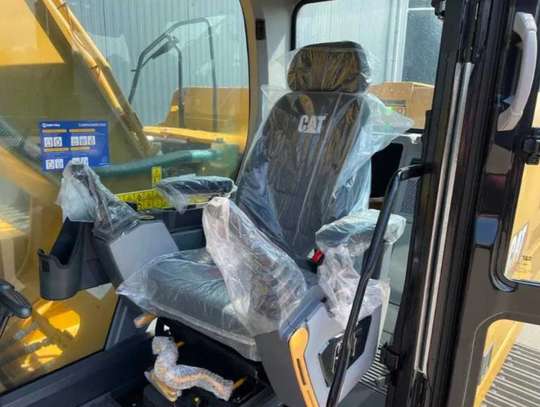

Cab: Climate control, touchscreen display, operator ID, Bluetooth key, hydraulic smart mode
