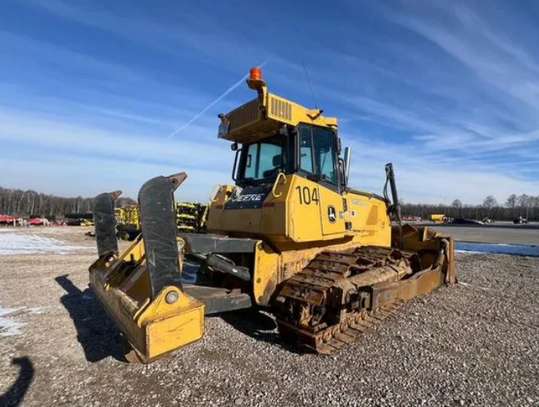

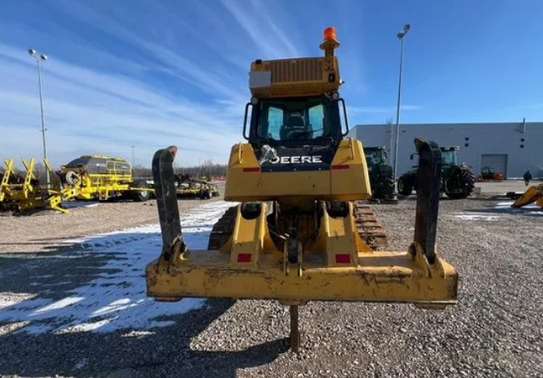

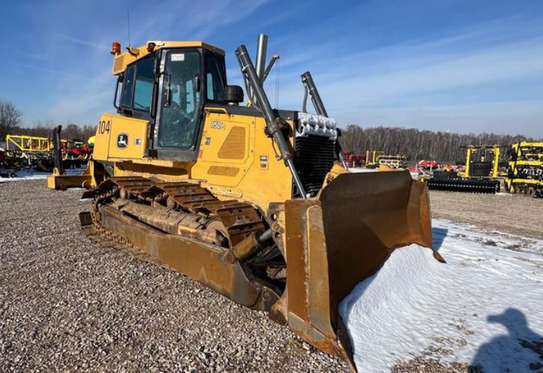

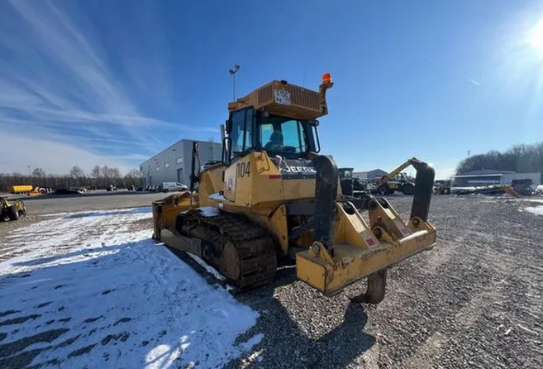

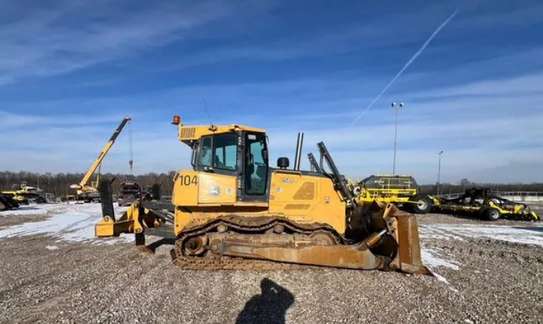

M1 -John Deere 850

John Deere 850J-II - Key Specifications
Engine
Type: Diesel, 6-cylinder inline

Model: John Deere PowerTech 6068

Displacement: 6,800 cm³

Net Power: 205 kW @ 1,800 rpm

Maximum Rated Speed: 1,800 rpm

Weight & Dimensions
Length: 5,384 mm

Width (body): 2,489 mm

Height (cab): 3,175 mm

Operating Weight: ~21,500 kg (standard) / ~23,100 kg (LGP)

Transmission
Type: Hydrostatic, dual path

Max Forward Speed: 9.7 km/h

Max Reverse Speed: 9.7 km/h

Undercarriage
Track Gauge: 1,880 mm

Ground Clearance: 409 mm

Track on Ground Length: 2,769 mm

Shoe Width: 610 mm

Track Pitch: 203 mm

Ground Pressure: 0.049 MPa

Track Links per Side: 40

Carrier Rollers per Side: 2

Bottom Rollers per Side: 7

Blade
Width: 3,251 mm

Max Blade Lift: 1,151 mm

Max Blade Digging Depth: 599 mm

Capacity: ~5.6 - 6.4 m³ (depending on blade type)

Capacities
Fuel Tank: 371 L

Engine Oil: 26 L

Cooling System: 35 L

Hydraulic System: 106 L

Transmission: 106 L
